Commercial Bathroom Faucet Height & Spout Reach: Matching Faucets to Undermount, Integrated & Vessel Sinks
Commercial faucet geometry should be designed around the sink—not selected independently from it. Spout reach determines where water lands, outlet height affects hand clearance and impact velocity, and mounting setback changes the user’s natural washing position. Poor coordination creates splash, awkward hand placement and sensor complaints even when the faucet itself is functioning correctly.
Six Dimensions That Control User Experience
Spout Reach
Horizontal distance from faucet centerline toward the basin.
Outlet Height
Vertical distance between the outlet and basin washing zone.
Deck Setback
Distance between faucet mounting position and basin edge.
Basin Depth
Controls hand clearance and splash containment.
Drain Position
Direct stream impact near the drain can increase splash.
Sensor Field
Hands should enter detection naturally at the intended washing point.
Different Basins Need Different Faucet Geometry
| Sink Type | Faucet Priority | Common Risk |
|---|---|---|
| Undermount | Moderate reach into bowl center | Counter setback pushes stream too far rearward. |
| Integrated / solid surface | Coordinate exact molded basin geometry | Shallow basin creates splash. |
| Vessel | Tall faucet or wall-mounted outlet | Excessive outlet height increases impact velocity. |
| Large institutional basin | Longer gooseneck reach | Insufficient reach creates awkward hand position. |
Fontana Tall Brushed Nickel Touchless Motion Sensor Faucet with Vessel Sink
This Fontana installation is especially useful because the faucet and vessel basin are presented as a coordinated assembly rather than two unrelated components. The elevated body provides the clearance required to reach over an above-counter vessel rim.
For vessel installations, the outlet should project sufficiently into the bowl without being positioned excessively high above the water-impact point.
Tall architecture intentionally coordinated with above-counter vessel geometry.
Verify outlet-to-basin distance and stream impact before final countertop drilling.

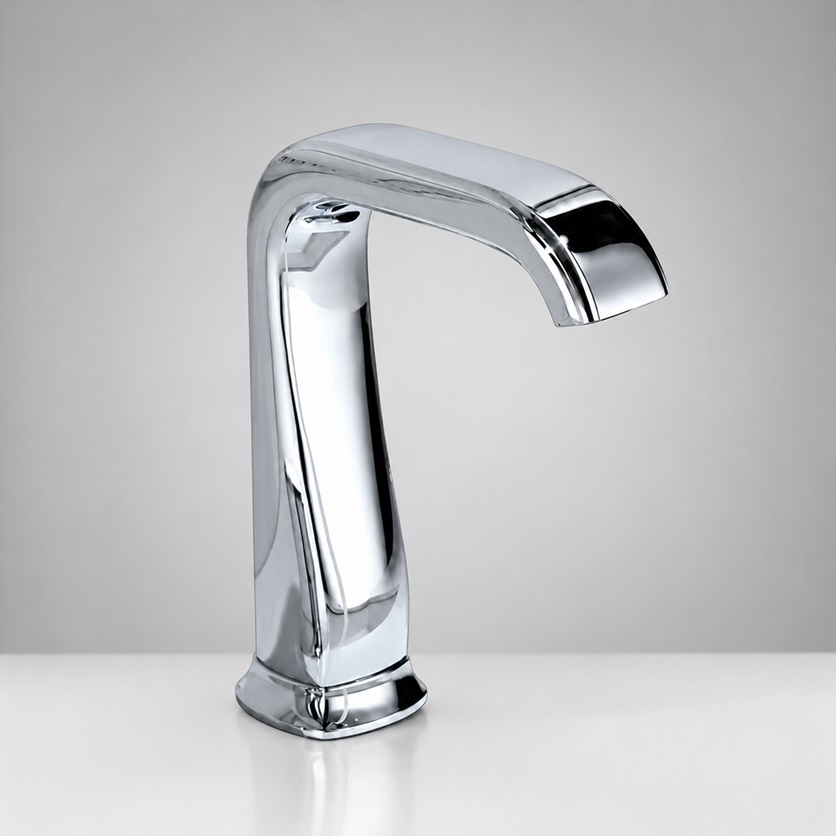

BathSelect Commercial Chrome Automatic Touchless Sensor Faucet
BathSelect’s commercial deck-mounted configuration illustrates the standard undermount or integrated-basin approach. The faucet mounts behind the bowl, so countertop setback directly determines how far the stream reaches into the handwashing zone.
This is where countertop coordination matters: moving the mounting hole rearward to clear sink hardware can materially change user position and splash behavior.
Conventional deck mounting works across many commercial basin types.
Approve the faucet-hole location only after the exact sink template is known.

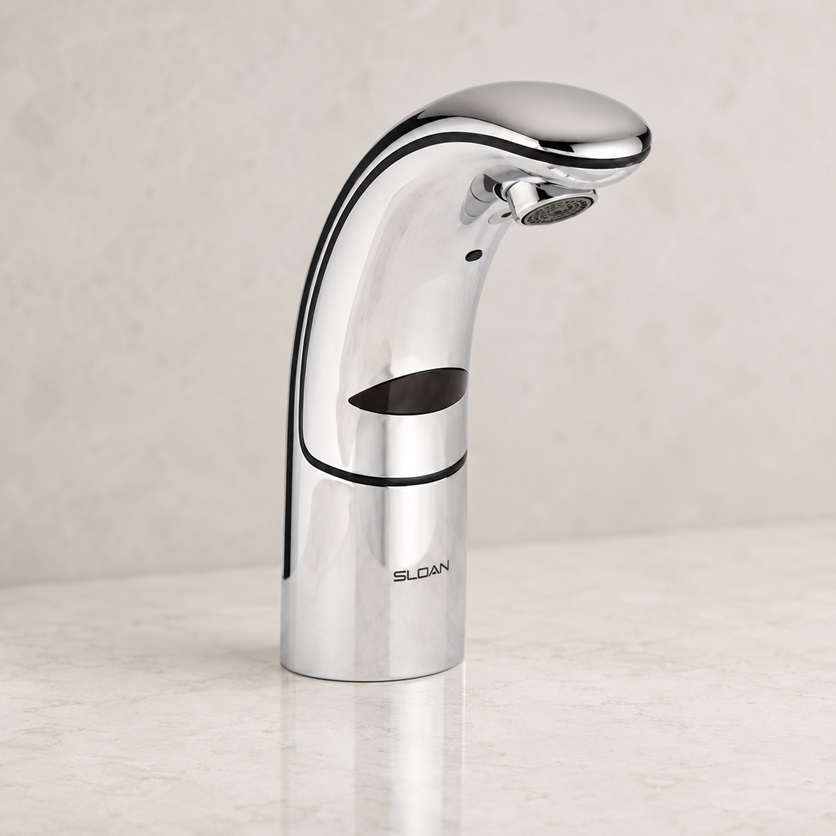

Sloan Optima® EAF-150 Commercial Sensor Faucet
The compact EAF architecture illustrates the opposite strategy from a tall vessel faucet. Lower outlet height reduces fall distance and is well suited to conventional commercial lavatories where the faucet mounts close to the basin edge.
Compact geometry can reduce splash, but insufficient projection still creates an uncomfortable handwashing position if the countertop setback is excessive.
Compact commercial profile suits conventional integrated and undermount basins.
Confirm natural hand position before standardizing across multiple sink models.

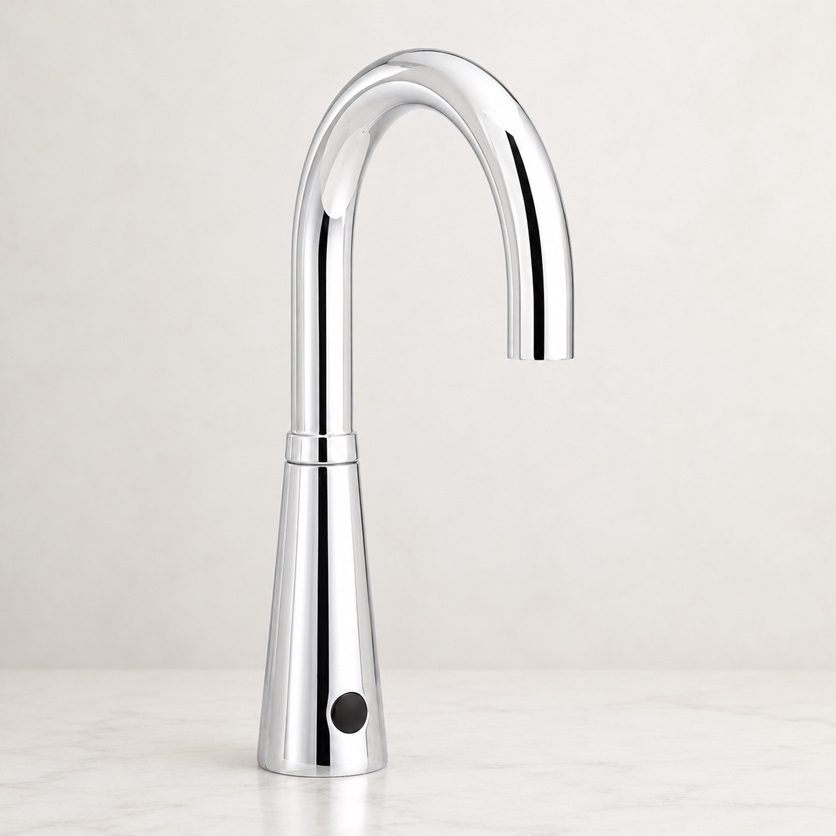

American Standard Selectronic® Commercial Gooseneck Touchless Faucet
Gooseneck commercial faucets provide additional vertical and horizontal clearance for larger basins. The longer form can improve handwashing room, particularly where the sink bowl is deeper or where facility tasks require more clearance beneath the outlet.
Greater clearance than compact commercial faucet forms.
More height means the stream trajectory and basin depth become increasingly important.

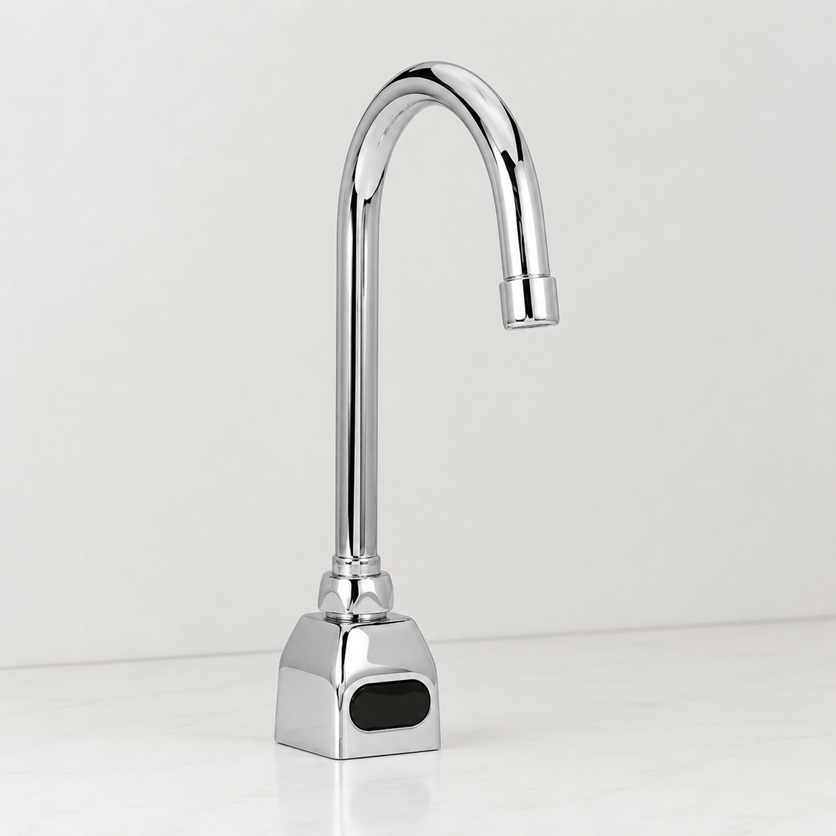

Zurn AquaSense® Commercial Gooseneck Sensor Faucet
Zurn’s gooseneck architecture demonstrates why projection and height need to be considered together. Current AquaSense engineering documentation publishes dedicated gooseneck configurations specifically to provide additional washing clearance.
For larger institutional bowls, this can improve usability; for shallow designer basins, the same additional height may increase splash.
High-clearance commercial form supports larger handwashing zones.
Do not assume a taller gooseneck automatically improves every basin.
Why Tall Faucets Can Splash More
Water leaving a taller outlet travels farther before contacting the basin. That additional fall distance increases impact velocity. Shallow vessel sinks and hard flat basin surfaces can therefore become more splash-sensitive when paired with excessively tall outlets.
The Stream Should Land in the Working Zone
| Stream Position | Result |
|---|---|
| Too close to rear wall | User’s hands contact basin or backsplash. |
| Directly on drain | Can increase upward splash depending on drain geometry. |
| Too close to front rim | Water can escape the basin during washing. |
| Central working zone | Provides natural hand position and controlled containment. |
The Faucet Must Detect Hands Where the Water Lands
A touchless faucet creates two invisible geometries: the water trajectory and the sensing field. Those zones should overlap naturally.
If the sensor activates before hands reach the basin, users encounter unnecessary water. If the sensing zone is too close to the back of the bowl, users begin waving their hands around searching for activation.
One Full-Scale Sink Mock-Up Can Prevent Hundreds of Problems
For airports, hotels, headquarters and large public buildings, construct one complete lavatory station before releasing all countertop fabrication.
Confirm faucet reach, outlet height, sensor activation, hand clearance, stream impact, splash and maintenance access with the exact production sink and faucet.
Commercial Faucet Brands Related to Basin Geometry
Commercial Faucet Height & Reach FAQ
How far should a commercial faucet reach into the basin?
There is no universal dimension. The stream should land comfortably inside the intended handwashing zone without striking the front rim or rear wall.
Do vessel sinks require tall faucets?
Usually a tall deck-mounted faucet or correctly positioned wall-mounted faucet is required to clear the vessel rim.
Can a faucet be too tall?
Yes. Excessive outlet height increases water fall distance and may increase splash in shallow bowls.
Why does countertop setback matter?
Moving the faucet farther behind the basin reduces effective reach into the bowl.
Should the stream hit the drain?
Not necessarily. Direct drain impact can produce undesirable splash depending on drain and basin geometry.
Should architects specify faucet and basin together?
Yes. Treat them as one coordinated lavatory assembly rather than independent finish selections.
Professional Sources
U.S. DOJ — ADA Standards
Accessibility requirements affecting commercial lavatory height, clearances and controls.
American Society of Plumbing Engineers
Commercial plumbing engineering and fixture coordination resources.
International Code Council
Model plumbing and building-code resources affecting commercial lavatory installations.
U.S. EPA — Bathroom Faucet Efficiency
Public-lavatory flow and water-efficiency guidance.
ASME Codes & Standards
Fixture and plumbing-product standard references used in commercial specification.
Match the Faucet to the Basin Before Drilling the Countertop
The ideal commercial faucet places water and sensor detection in the same natural handwashing zone. Compact faucets work well with conventional shallow commercial basins; goosenecks create additional clearance for larger bowls; tall faucets can coordinate beautifully with vessel sinks but require tighter splash control. Height, reach, basin depth and mounting setback should therefore be approved as one engineered assembly.
Review Fontana Tall Touchless Vessel Faucet →Commercial Bathroom Faucet Height & Spout Reach — Fresh Review Evidence for Gooseneck, Compact, Tall & Long-Stem Faucet Forms
This rebuilt page uses a fresh six-review set from the larger archive rather than carrying forward the prior faucet group. The selected products provide genuinely different physical forms: extended gooseneck, compact low-profile, tall all-in-one, compact architectural, long-stem and mixed-control sensor faucets. That makes the review evidence much more directly useful for comparing outlet height, effective projection, hand clearance, stream landing and basin compatibility.
Height
Outlet height controls vertical hand clearance and water fall distance. More clearance is useful only when the basin can contain the resulting stream impact.
Reach
Horizontal projection should place the stream inside the natural handwashing zone after countertop setback is included.
Form Factor
Compact, gooseneck and long-stem faucets solve different basin conditions; there is no single geometry that is best for every commercial lavatory.
Commercial Faucet Height & Spout Reach Review Evidence
BathSelect Wella Goose Neck Brushed Nickel Automatic Commercial Sensor Faucet
Highly dependable unit
The faucet maintained highly dependable infrared activation during continuous public usage, while the extended goose-neck geometry improved sink reach and reduced countertop water accumulation.
Fontana Automatic Hands Free Commercial Sensor Faucet
Impressed!! Fast service!
BathSelect Customer Service was courteous and efficient… they took their time in assisting us in selecting our school's faucet.
Milano All-in-One Thermostatic Automatic Commercial Sensor Faucet
If looking for commercial, go with this
The device looks beautiful and is not difficult to install… we ordered 8 units… the water pressure is enough! And the temperature level is on the side.
BathSelect Salina Commercial Sensor Faucet
Convenience
It has been a really pleasant experience for me as an architect to specify the Salina… for a commercial project… all blends durability, utility, and modern design.
BathSelect Long Stem Brushed Nickel Commercial Motion Sensor Faucet
Complete Hygiene Control
Its sensor response is stable and well-controlled… Access, usability, and overall fitment support a smoother install and a more predictable ownership experience.
BathSelect Platinum Thermostatic Temperature Control Automatic Commercial Sensor Faucet
Great if you have customers who leave water on
In our hotel we have a major problem with customers leaving the bathroom water running… It is quite simple to install and you can control the temperature so that you don't waste water.
Faucet Form vs. Basin Geometry Matrix
| Faucet Form | Geometry Benefit | Coordination Consideration | Review Example |
|---|---|---|---|
| Extended Gooseneck | Greater horizontal reach and vertical hand clearance. | Higher outlet positions may increase splash potential with shallow basins. | B510-BN |
| Compact Low Profile | Shorter water-drop distance for conventional commercial lavatories. | Countertop setback can reduce effective spout reach. | B517 |
| Tall All-in-One | Additional clearance with integrated temperature control. | Body height and control placement require adequate deck space. | B5129 |
| Compact Architectural | Compact profile with integrated sensor operation. | Spout projection should be coordinated with the intended handwashing position. | BST511M |
| Long Stem | Extended reach for larger or accessible basin configurations. | Longer projection should be checked against stream position and front-edge splash. | BS1091-CR |
| Temperature-Control Sensor | Hands-free operation with user temperature adjustment. | Sensor and temperature-control placement should preserve adequate deck and hand clearance. | B505 |
Commercial Spout-Reach Acceptance Matrix
| Condition | User Experience | Project Coordination Check |
|---|---|---|
| Reach Too Short | Hands are positioned too close to the rear wall or backsplash. | Increase spout projection, reduce countertop setback or consider a longer-stem or gooseneck faucet. |
| Reach Too Long | The water stream lands too close to the front edge of the basin. | Reduce projection or adjust the faucet mounting position. |
| Outlet Too High | Greater hand clearance may increase splash potential. | Evaluate stream impact using the selected basin, outlet type and operating pressure. |
| Outlet Too Low | Available hand clearance may be restricted. | Confirm adequate space above the basin and applicable accessibility requirements. |
| Sensor Alignment | Activation may occur before hands are positioned beneath the water stream. | Verify sensor response with the final faucet and basin assembly. |
| Balanced Geometry | Hand position, sensor activation and stream location work together naturally. | Coordinate faucet reach, basin geometry, countertop setback and sensor position as a complete assembly. |
